DIOSS Troubleshooting Guide:

Two Green LEDs by S1

Power OFF? -> Turn ON

Login: MAINT MAINT

Enable Software

E-STOP on OCP:

a. E-STOP ON: Check HALT Loops

b. E-STOP OFF: Check Sense Loops - (F9) Diagnostics

FAULT Light SOLIDS on OCP:

a. Fault Light SOLID - Check Feeder

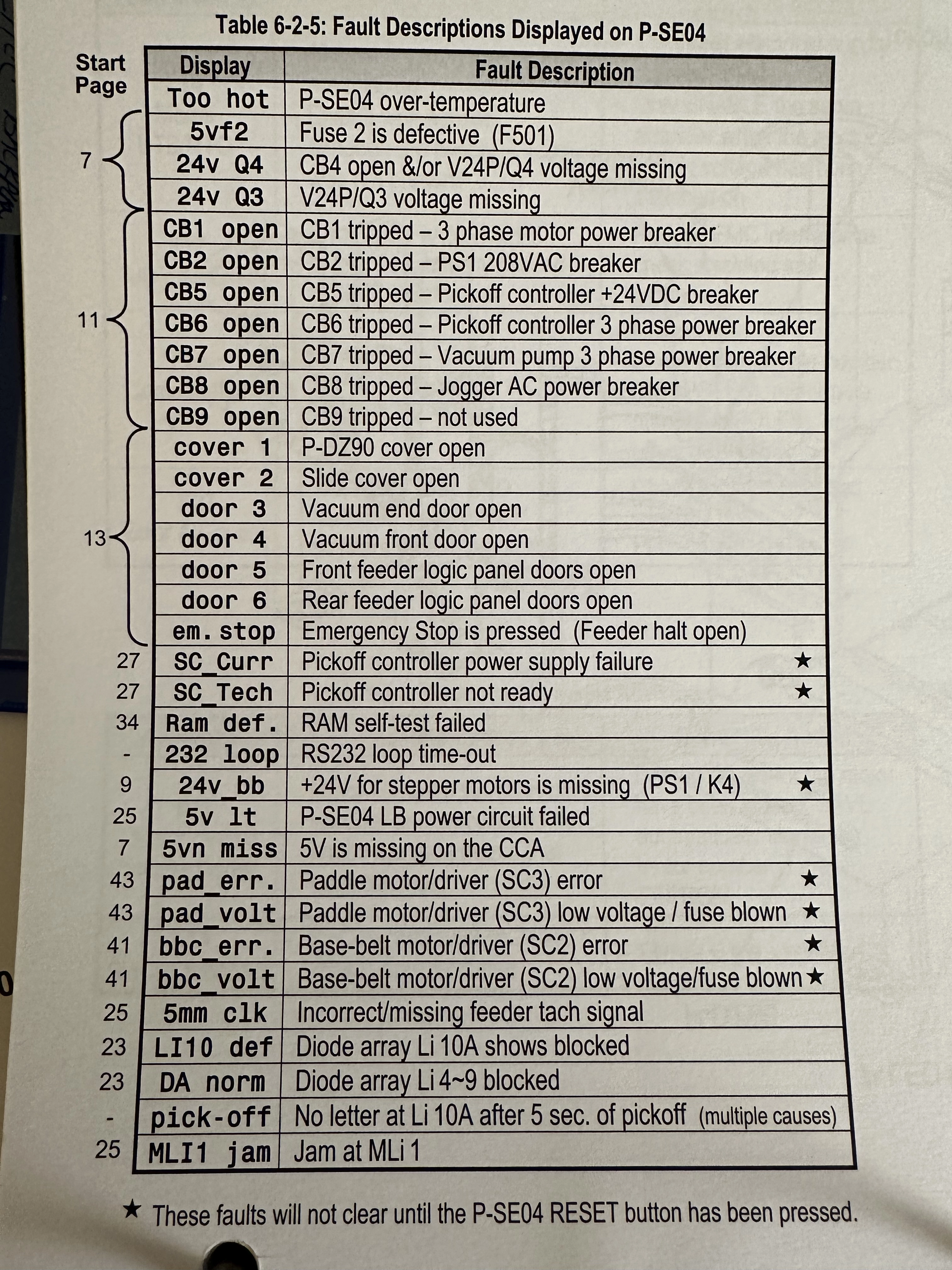

1. Check SE04 for Error Messages: 6-2-32

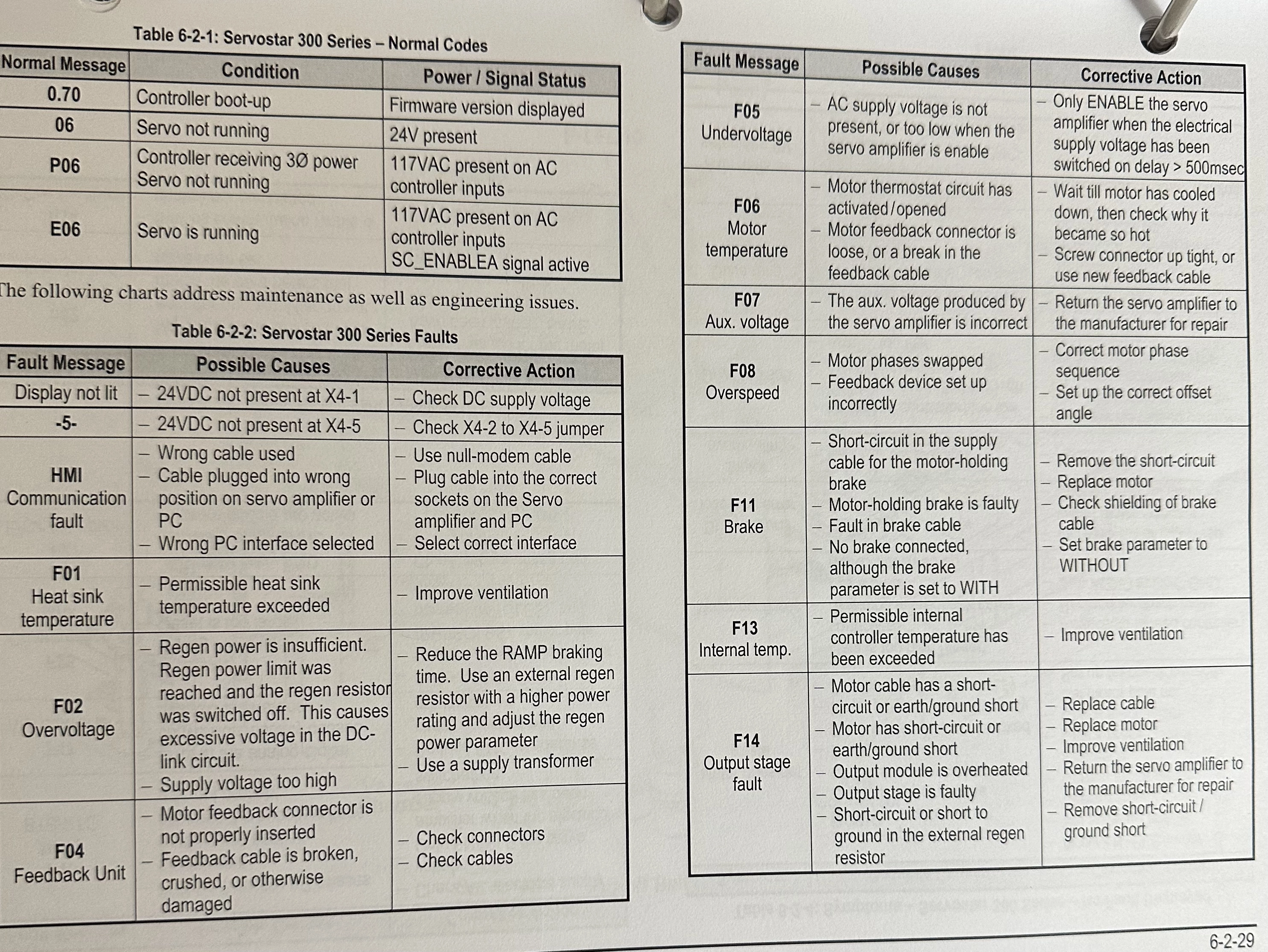

2. Check SC1 for Error Messages: 6-2-29:

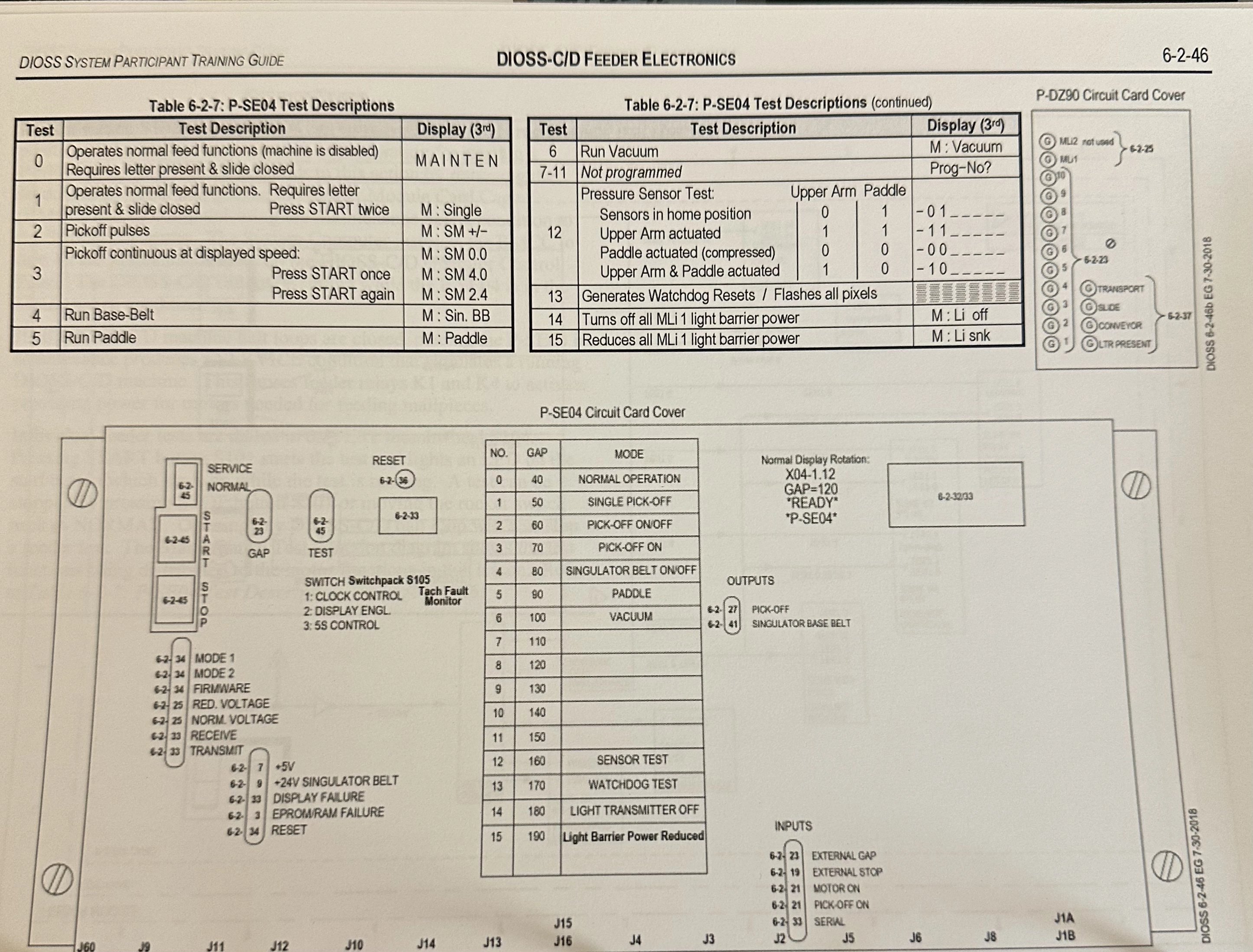

3: F9 for Diagnostics:

b. Fault Light SOLID - Check KIT

FAULT Light FLASHING on OCP:

a. Fault Light FLASHING - Check KIT

1. Check CMCC LEDs 11 X 17:

2. Check RMCC LEDs 11 X 17:

3: F9 for Diagnostics:

a. Fault Light FLASHING - Check Feeder

1. Check CMCC LEDs 11 X 17:

2. Check RMCC LEDs 11 X 17:

3: F9 for Diagnostics:

No E-STOP or FAULT Light on OCP:

a) Select Mode: OCR

b) Select Operation: 750

c) Select Sort Plan - Pars Special Pockets

d) Start Mail Processing

e) Press START Button:

f) Check FOUR Switches

1. Lower Finger:

2. 1st Guide Roller:

3: Slide:

4: Letter Present:

g) Check FOUR Motors - Test each

1. Bottom Belt Conveyor SC2 6-2-41

2. Paddle: SC3 K4 6-2-43

3: Pickup:SC1 K1 6-2-27

4: Vacuum: K2 6-2-21 6-2-5

h) Feed one piece of Mail and Check the mailpath and vacuum

i) Load Test Deck and Run Test Deck

1. Ensure Proper Sortation:

2. Any Threshold met?:

a: Tracking - Too many displaced/Too many tracking threshold exceeded

b. Past gate

c: unplanned events

d. Too many missing WFOV Images/Excessive invalid WABCR Data

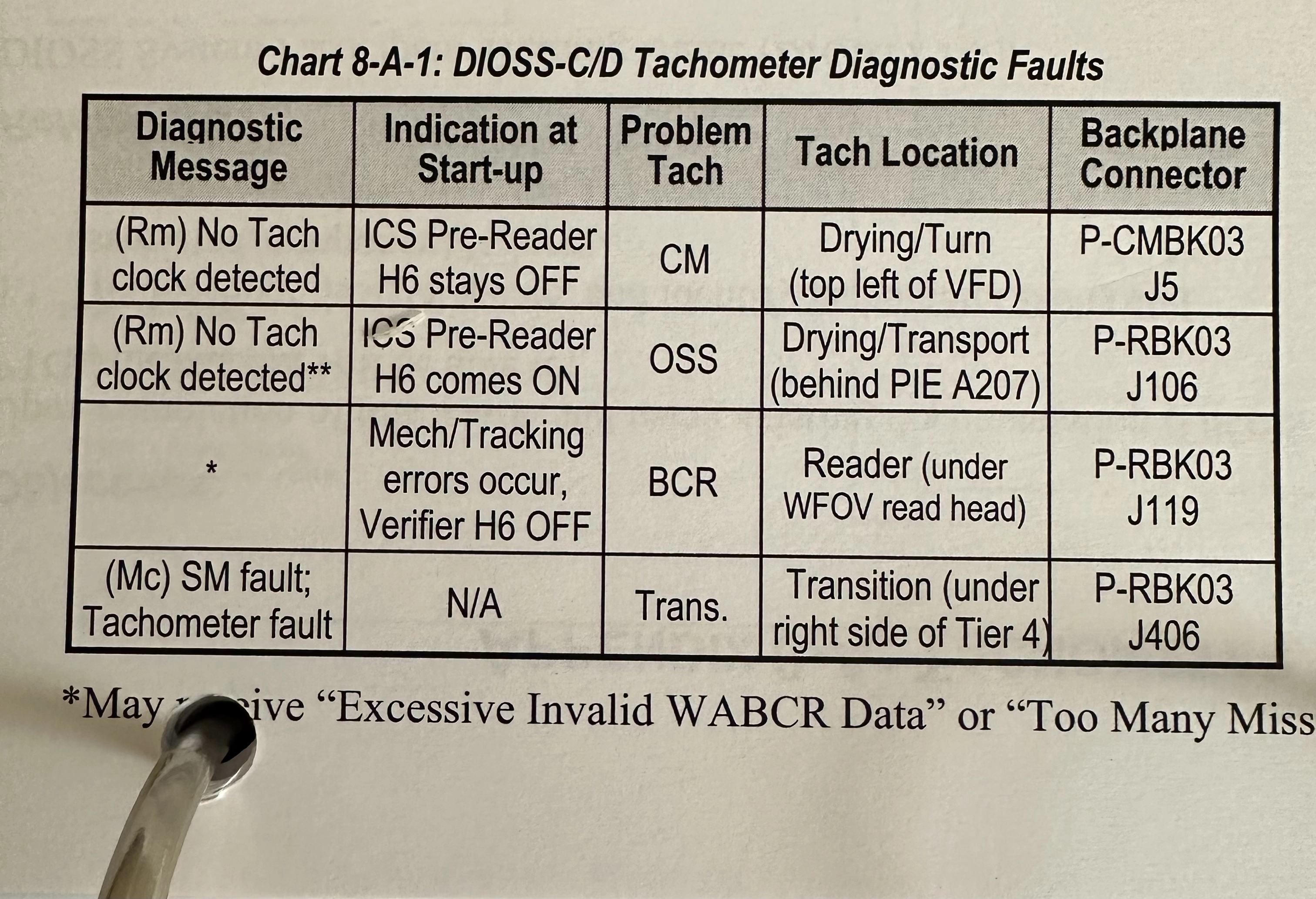

1. ICS# Electronics Enclosure H6 OFF - CM Tach

2. ICS# Electronics Enclosure H6 ON - OSS Tech - 8-A-2
